Production Monitor

The PM series is the newest range of professional active studio monitor for musicians, producers and content creators at home and project studio, for tracking, mixing, creation and evaluation.



Power + Accuracy = Details

With a mission to encompass the full range of the audio world, the PM's detailing and revealingness means giving you the full dynamics and full spectrum coverage, even to the low ends, making it a great tool for music and film evaluation and enjoyment.



  • Heavily braced, Double MDF panels rigid enclosure
  • Torodial transformer power sulpply for transient response with low noise
  • 80 W + 50 W class AB bi-amplifier
  • 6.5" Polypropylene (PP) cone woofer
  • 1" silk soft dome tweeter
  • High, Low shelving EQs
  • Excellent Detailing and Dynamics



The PM Series delivers exceptional performance at an unbeatable value. Taking on from the experience at designing and building reference monitors, The PM is all about power and detail. Retaining all the learnings from the SRP and SM ranges to incorporate in the PM, not only high quality performance and design but also high-grade components.





George Necola, Gearslutz:

"Before starting my review and go into details let me say this: you will never get as much bang for the buck as with the PM50s. The performance (price/value/sound) ratio is enormous or to describe in some candidate words "It's always good to be underestimated".

I estimated a lot and they deliver.

The PM50 are like a mixture of ATC midrange, PSI highend and Barefoot lowend. I am not going to compare 500 US$/pair monitors to monitors that cost 10 or 20 times more.. what I am going to explain is that you get the most balanced product on the market."

See more - https://www.gearslutz.com/board/reviews/1113355-sonodyne-pm-50-a.html

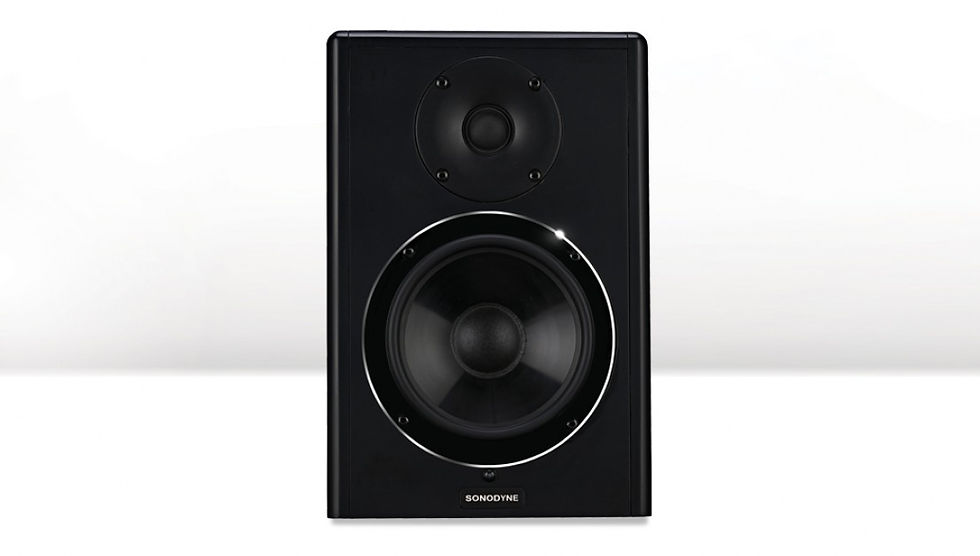

Sonodyne PM 100 - 6.5" Active Production Monitor

HK$4,200.00Price
  • Enclosure Heavily braced Double MDF, vented
    HF Driver 26 mm (1") Silk Dome, Neodymium magnet
    LF Driver 165 mm (6.5") injected Polypropylene (PP) Cone
    HF Amplifier before clipping 80 W Class AB
    LF Amplifier before clipping 50 W Class AB
    Amplifier THD @ Rated Power < 0.04%
    Max SPL @ 1 m 107 dB
    Frequency Response 65 Hz – 20 kHz (±2 dB)
    Usable Frequency Response (-10 dB) 55 Hz – 22 kHz
    Crossover Frequency 2.5 kHz
    CMRR > 65 dB
    Inputs Balanced XLR ; Un-balanced RCA
    Input Level (for 90 dB SPL @ 1 m) 0 dBu
    Input Impedance 22 kOhm
    SNR @ Unity Gain > 90 dB (full output)
    Gain Control Range -70 – +6 dB
    Controls (Rear) Power, Gain, EQs
    High Shelving EQ -2 dB @ 15 kHz
    Low Shelving EQ -2 / -4 / -6 dB @ 80 Hz
    Bass Roll-off 80 Hz, 6 dB/oct
    Inidicator Power On/Off
    Protections Over Current, Overheat, RFI, On/Off Transients
    Pwer Consumption 200 VA max.
    Power Requirements 230 VAC, ±10 %, 50 Hz
    Dimensions 332 mm (H) x 220 mm (W) x 262 mm (D)
    Net Weight 10 kg
